Cellular Shade Specialties
Perfect Arches (Do not require a template)
The Perfect Arches are those where the radius of the circle is consistent at all points.
Non-perfect Arches (Require Templates)
The Non-perfect Arches are not consistent at all points. Deviation of even 1/16″ makes it imperfect.

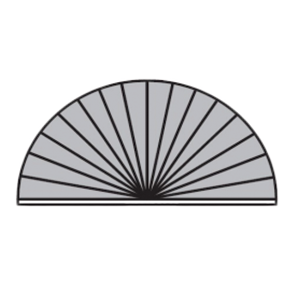

ARCHES
Width MINIMUM = 18″ MAXIMUM = 84″
Height MINIMUM = 9″ MAXIMUM = 48″
Non-movable arches
Non-perfect arches require templates

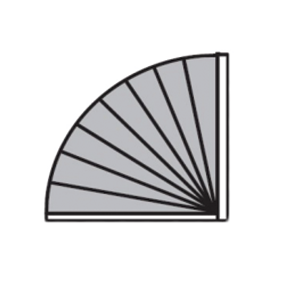

QUARTER ARCHES
Width MINIMUM = 9″ MAXIMUM = 50″
Non-movable quarter arches
Non-perfect quarter arches require templates

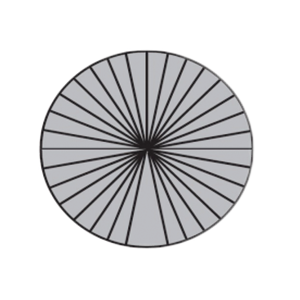

CIRCLES
Width MIN 9/16″ = 9″ MAX 9/16″ = 42″
Width MIN 7/16″ = 12″ MAX 7/16″ = 42″
Non-movable circles
Non-perfect circles require templates

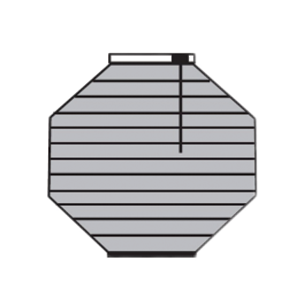

OCTAGONS
Width MINIMUM = 12″ MAXIMUM = 48″
Height MINIMUM = 12″ MAXIMUM = 48″
Measurement of all 8 sides are needed.
Templates are required

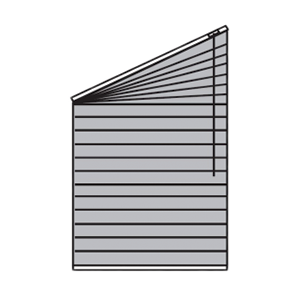

TRAPEZOIDS
Width MINIMUM = 12″ MAXIMUM = 60″
Height MINIMUM = 12″ MAXIMUM = 72″
The longer side drop can not exceed 130% of the shorter side drop.
Measurement of all 4 sides are needed
